Portable Ultrasound

    We are proposing a black and white, or color portable ultrasound. This portable ultrasound is controled by a dedicated software.

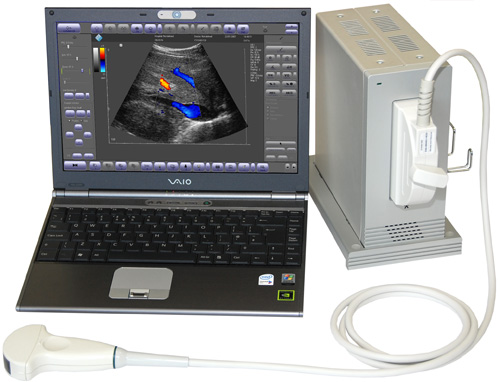

Echographe

Portable ultrasound.

Common Specifications

General:
- "FREEZE" mode.
- Variable viewing area for frame rate maximizing.
- Gray scale : 256.
- Color Scale : 256.
- Scanning depth : max 300 mm.
- Scanning method: electronic linear, electronic convex, electronic microconvex.
- Measurements and calculations packages.









Signal processing:
Pre-processing:
- TGC control.
- Dynamic range control.
- Overall Gain Control.
- M-Mode sweep speed control.
- Accoustic power control.
Post-processing:
- Variable frame averaging.
- brightness, contrast, gamma control.
- scan direction, rotation / up / down controls.
- negative / positive control.
- bi-linear interpolation.
- echo enhancement control.
- noise rejection function control.
- speckle reduction function.
Focusing :
- Digital transmit focusing.
- Multi-focus mode:
    - transmit/receive focusing, max 4 points.
    - programmable focus area presets.
- Dynamic focus mode:
    - transmit variable focus, 8 points.
    - dynamic receive focus, 8 zones.
 Ultrasound software :
- Driver package.
- Ultrasound control software.
- 3DView Plugin (in option).
Computer Requirements:
- IBM PC Compatible Desktop/Notebook/Tablet PC.
- CPU Dual Core 1.6 Ghz or better.
- 1 Mb of RAM or better.
- USB 2.0 Interface.
- Windows XP.




   Don't hesitate to contact us at commercial@iimt.fr for more informations.

Video made with the portable ultrasound.
